Particle Auth for Unreal Engine

Extending beyond directly programmatic implementations, Particle Auth also features full support for Unreal Engine 5 through a no-code interface, enabling the integration of Particle’s Wallet-as-a-Service in a familiar and straightforward environment when building games on Unreal Engine.

​
Getting Started

Getting started with the Particle Auth Unreal Engine SDK is simple, although you must manually download and install the SDK using the particle-unreal GitHub repository. To install:
  1. Open your project’s root directly (you’ll find your .uproject file here).
  2. Create a new directory, Plugins, or skip this step if Plugins already exists.
  3. Navigate to Plugins/ParticleSDK within particle-unreal and copy it to your Plugins directory.
  4. Open the Unreal Engine 5 editor, head over to Menu, then Edit, and finally Plugins, in which you’ll find an option to enable ParticleSDK.

​
Examples of utilization

​

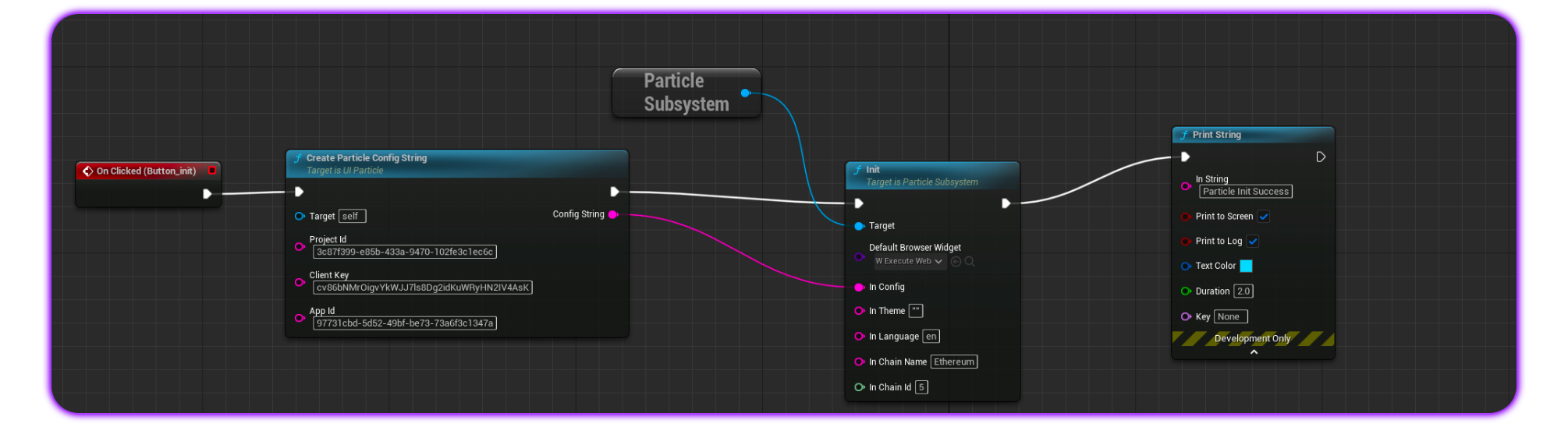

Initialization

To begin, you’ll need to create a config object with your projectId, clientKey, and appId filled in.
Find a guide on how to set up a project and find the required keys: Dashboard Guide.
After retrieving and setting the necessary values, you must call the Init function to complete the initialization. The Init function accepts the following parameters:
  • Default Browser Widget: Typically set to W_ExecuteWebBrowser. If you prefer to use a custom WebBrowser blueprint, you can do so if it follows the structure of W_ExecuteWebBrowser.
  • In Config: This links to the previously defined configuration object containing projectId, clientKey, and appId.
  • In Theme: An optional JSON string for customization. For more details, see Particle Auth Set Auth Theme.
  • In Language: Specifies the language used in the modal. Options include en, zh-cn, zh-tw, ja, or ko.
  • In Chain Name & In Chain Id: Defines the primary chain to be used, either EVM or Solana. For details on specific chainId and chainName configurations, refer to EVM Chains Structure.
Particle Network app Unreal.

​

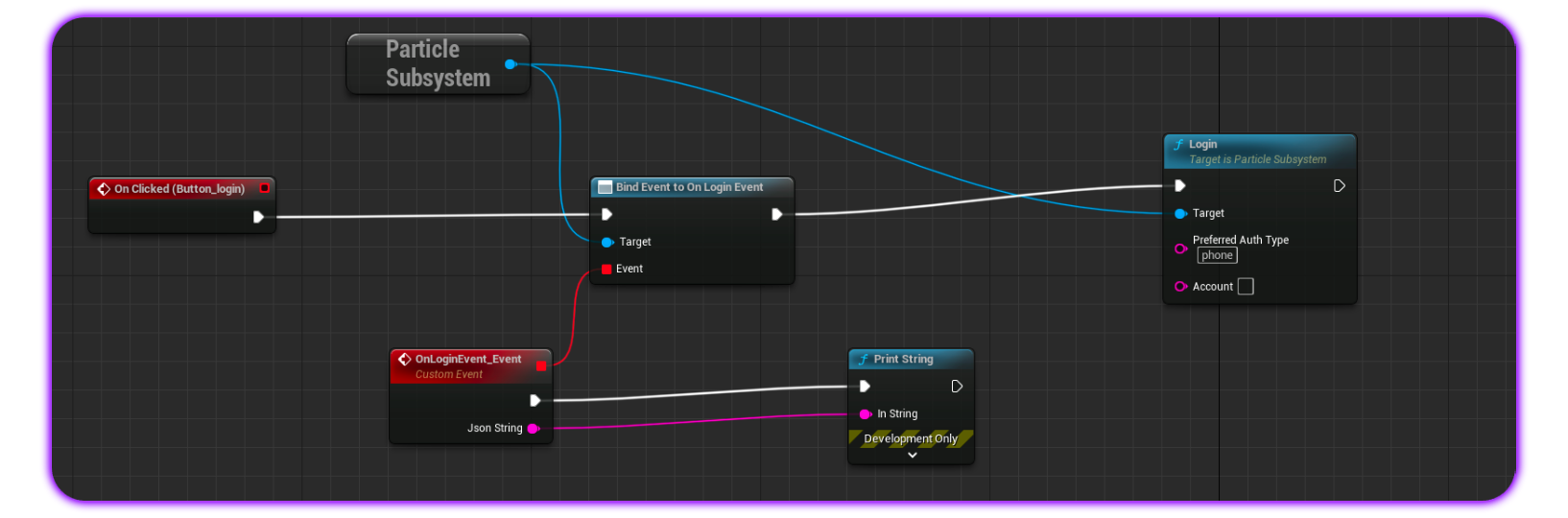

Login

The Login function is the core method for onboarding and account creation/sign-in within Particle Auth on Unreal Engine. It supports social logins and includes the following parameters:
  • Preferred Auth Type: (Optional) Specifies the authentication method. Options include:
    • phone for phone-based logins (sends a verification text and links the account to a phone number).
    • email for email-based logins (sends a verification email and links the account to an email address).
    • jwt for custom authentication using JWTs.
  • Account: (Optional) Used to pass the expected values for an email address, phone number, or JWT.
Upon successful login, the function returns a JSON string containing detailed user information (such as email or phone, addresses, UUID, token, etc.) as event data. Particle Network app Unreal.

​

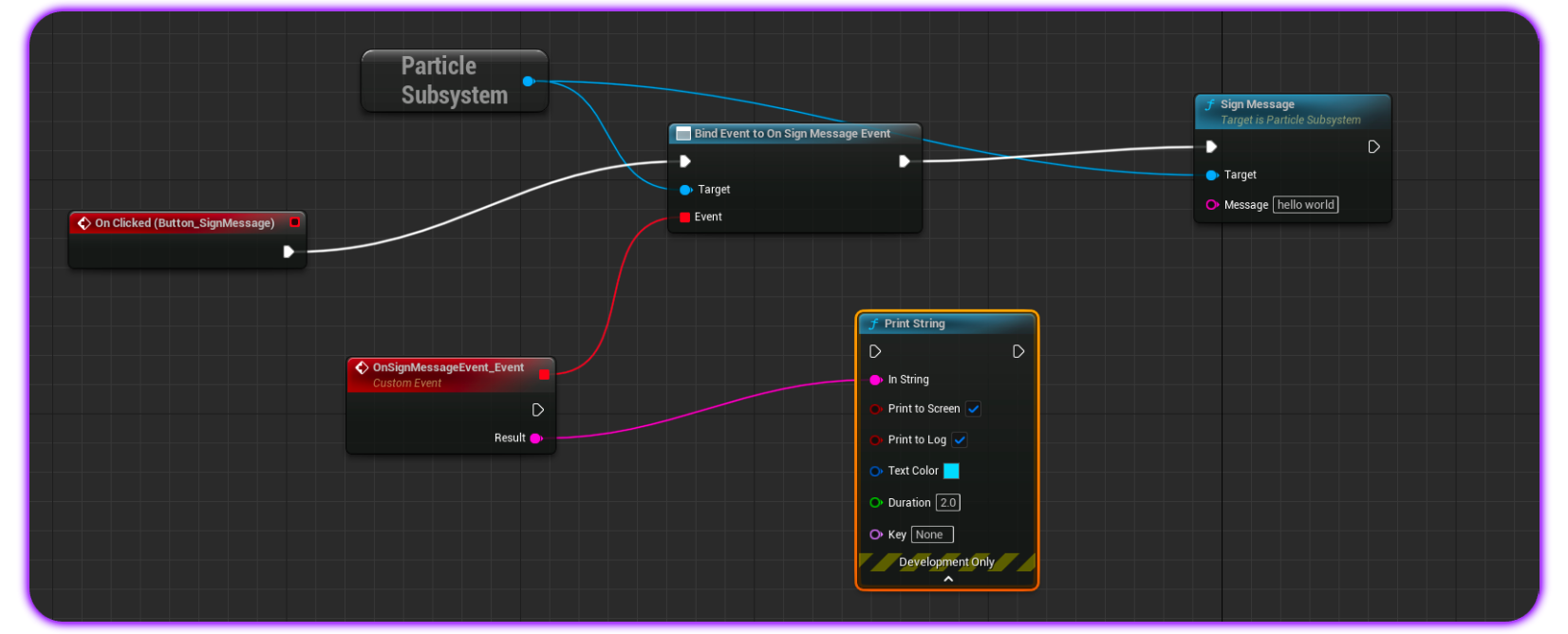

Sign Message

To prompt a standard message signature (for general strings, not typed data), you can use the SignMessage blueprint. This blueprint displays a signature request for the end user to confirm. The SignMessage function includes the following parameter:
  • Message: The message to be signed by the user. For EVM chains, this should be a standard UTF-8 string. For Solana, it should be a base58 string.
Upon successful confirmation, the signature is returned as event data via OnSignMessageEvent. Particle Network app Unreal.

​

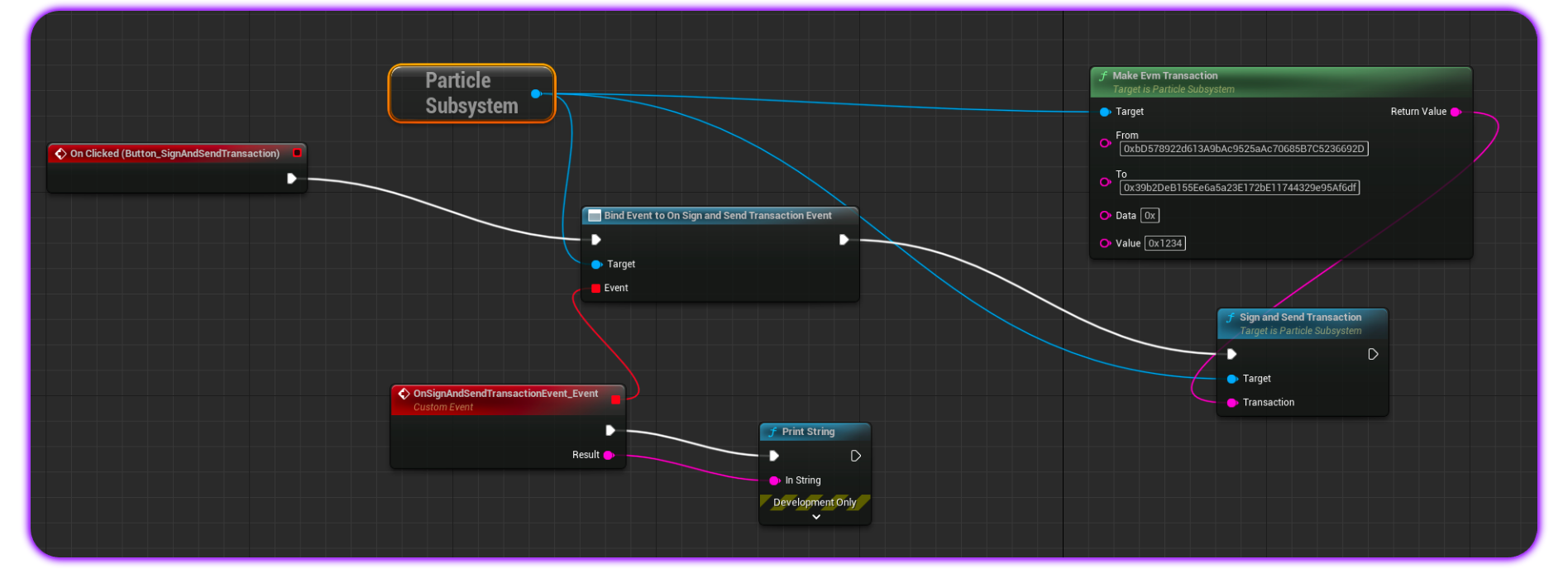

Sign and Send Transaction

SignAndSendTransaction is the core method for sending transactions on EVM and Solana. When called, it prompts the user with a transaction, allowing them to either confirm and push it to the network or reject and cancel the operation. The SignAndSendTransaction blueprint includes the following parameter:
  • Transaction: A string representing the transaction object/structure to be sent. For EVM, this should be a standard UTF-8 string; for Solana, it should be a base58 string (it can be a stringified object).
You can also use the MakeEvmTransaction helper method to generate an EVM transaction, which can then be attached to the Transaction parameter in SignAndSendTransaction for no-code transaction creation. Upon a successful signature, the event data, including the signature, is returned via OnSignAndSendTransactionEvent. Particle Network app Unreal.

​

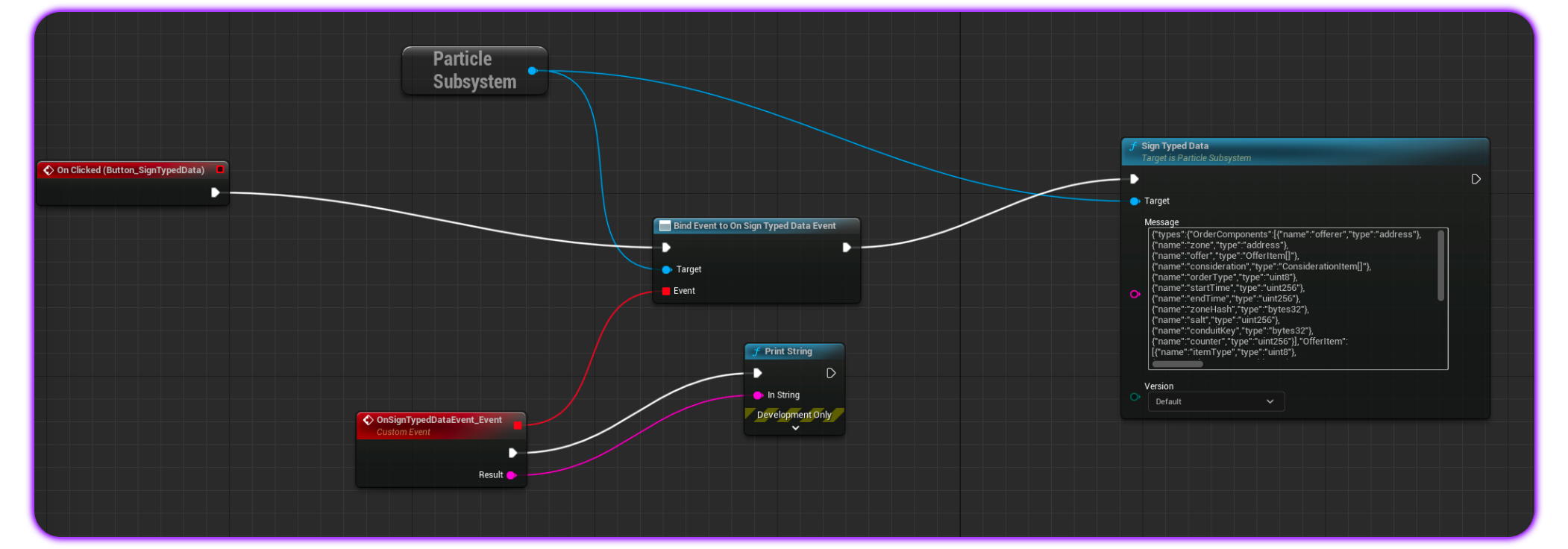

Sign Typed Data

On EVM chains, you can use SignTypedData as an alternative to SignMessage for signing structured (typed) data. The SignTypedData blueprint includes the following parameters:
  • Message: The data to be signed is provided as a standard JSON string containing the data structure.
  • Version: Particle Auth supports all three versions of eth_signTypedData: v1, v3, and v4. By default, v4 is used.
Upon confirmation, the signature is returned via OnSignTypedDataEvent. Particle Network app Unreal.

​

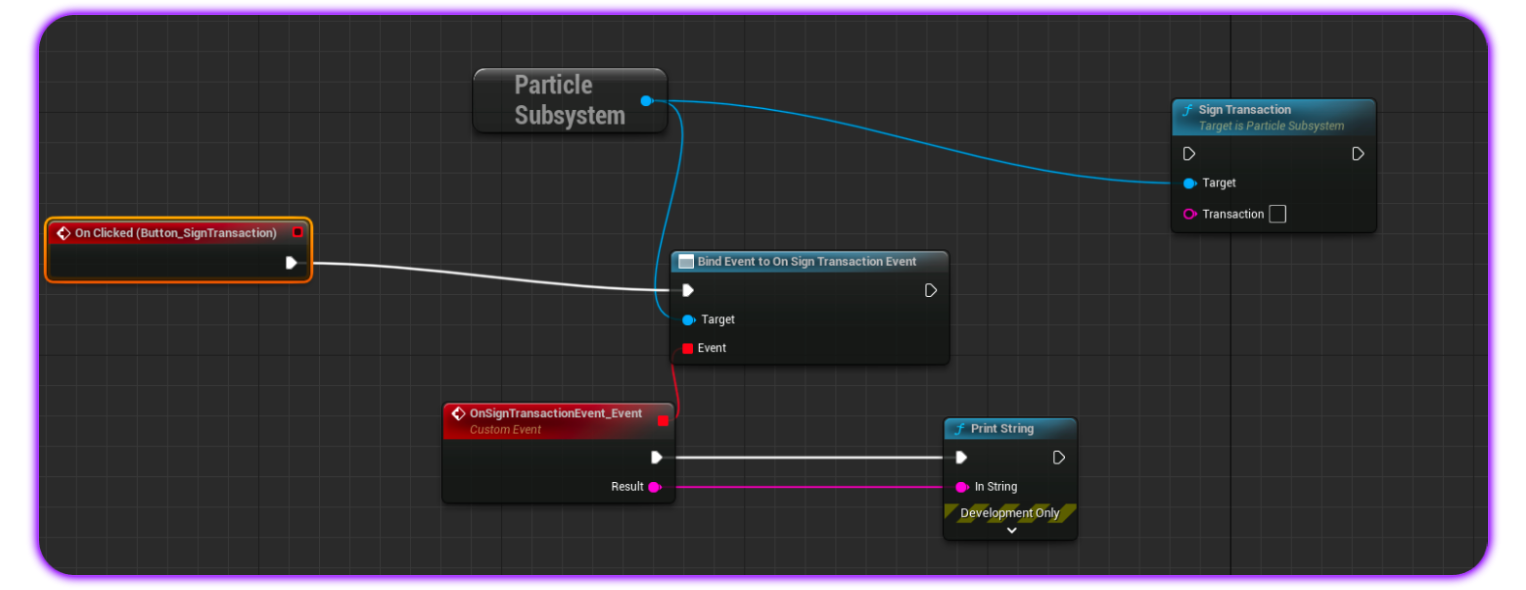

Sign Transaction

SignTransaction is a Solana-specific method for signing a transaction without pushing it to the network. The SignTransaction blueprint includes the following parameters:
  • Transaction: A base58 string representing a valid transaction structure to be signed.
Upon a successful signature, the completed signature is returned via OnSignTransactionEvent. Particle Network app Unreal.

​

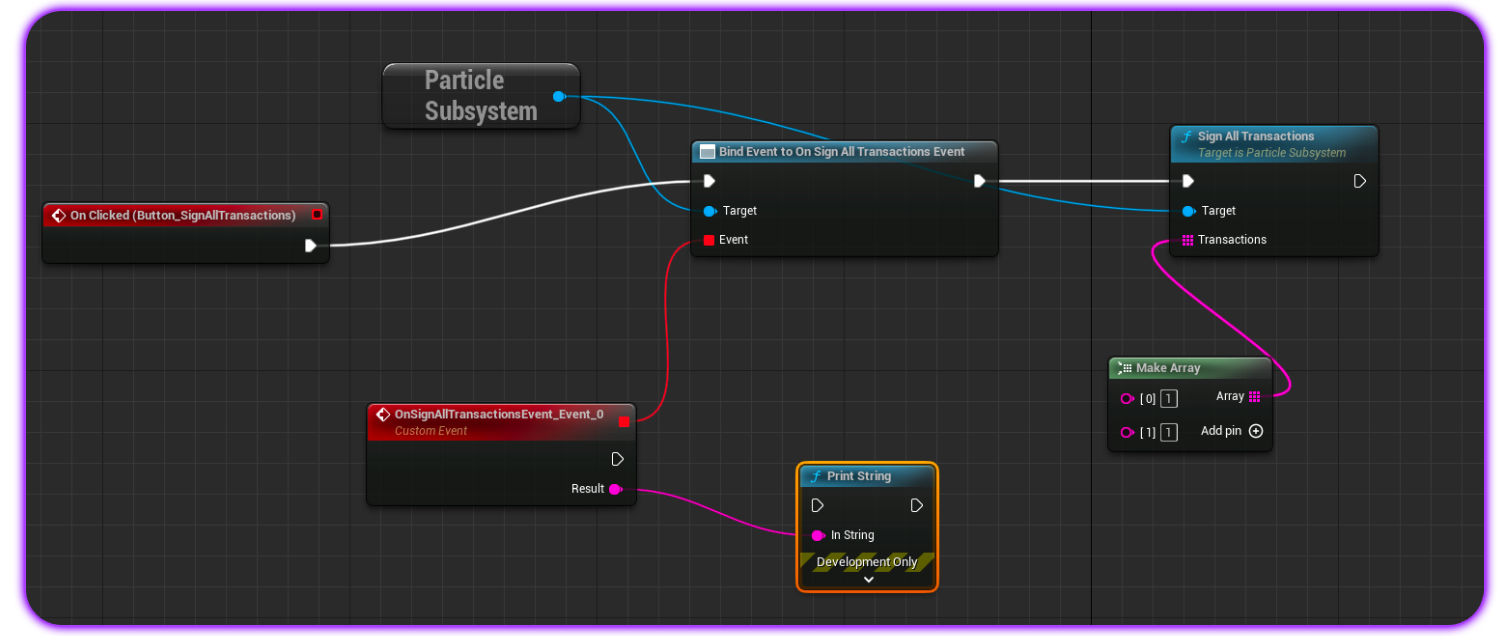

Sign All Transactions

The plural counterpart, SignAllTransactions, is another Solana-specific method for signing multiple transactions collectively without pushing them to the network. The SignAllTransactions blueprint includes the following parameters:
  • Transactions: An array of base58 strings, each representing a valid transaction to be signed.
Once the function completes and the signatures are generated, they are returned via OnSignAllTransactionsEvent. . Particle Network app Unreal.
